2024 Theodoor 4G Series Air Curtain Overdoor Fan Air Barrier for Door Restaurant Refrigeration Cold Storage

Guangzhou Theodoor Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2024 Theodoor 4G Series Air Curtain Overdoor Fan Air Barrier for Door Restaurant Refrigeration Cold Storage

Brand Name : THEODOOR

Model Number : FM-1215S2/Y

Certification : CCC

Place of Origin : GUANGDONG, CHINA

MOQ : 100 units

Price : USD 99-399 per pieces

Payment Terms : L/C, T/T

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 25-30 Working Days

Packaging Details : Cartons

Series : Theodoor 4G Series Air Curtain

Control : Manual Switch or Remote control

Operating Voltage : 220-240V or 110V

Mounting : Wall / Window Mount

Fan Type : Cross flow fan Air Curtain

Cover : Stainless steel or powder coated

Fan speed : 2-speed

Application : Restaurant/Hotel/chain store/commercial door

Size : 0.9m, 1m, 1.2m, 1.5m, 1.8m, 2m

Color : Silver (stainless steel) or white

Air Velocity : 9-11m/s

Contact Now

Feature

1. Elegant&Delicate appearance

Full stainless steel shell, and the super thin body won't rusty.

2. Stable performance

The high efficient motor, with overheating protector and has safety operation of 5000 hours continuously without defect.

3. Low noise operation

The optimized fan wheel provides stable & even air flow. It has large air volume and low noise performance.

4. Easy operation

Adopting remote control or key switch, it’s able to adjust high and low air velocity.

5. Application:for installation in hotel,chain supermarket,cafeteria, bakery, waiting room, restaurants, retail shop, department store, sports center etc.

Tech Spec

Item Voltage/frequency (v/hz) Size(mm)

Length

(mm)

Air speed

(m/s)

Air volume

(m3/h)

Noise

(dB)

Power

(w)

Net weight
FM-1209S2 220-240v/50hz 900x195x230 900 11 1400 55 160 10.5
FM-1210S2 220-240v/50hz 1000x195x230 1000 11 1600 56 180 11
FM-1212S2 220-240v/50hz 1200x195x230 1200 11 1900 56 190 13.5
FM-1215S2 220-240v/50hz 1500x195x230 1500 11 2500 57 230 16.5
FM-1218S2 220-240v/50hz 1800x195x230 1800 11 3200 58 300 19.5
FM-1220S2 220-240v/50hz 2000x195x230 2000 11 3600 59 350 22.5

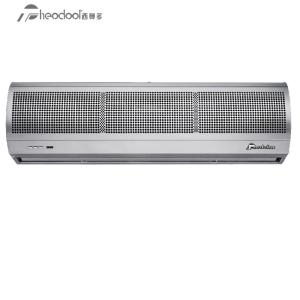

Product photos

Stainless steel

2024 Theodoor 4G Series Air Curtain Overdoor Fan Air Barrier for Door Restaurant Refrigeration Cold Storage

White

2024 Theodoor 4G Series Air Curtain Overdoor Fan Air Barrier for Door Restaurant Refrigeration Cold Storage

What is Air Curtain?

Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.

2024 Theodoor 4G Series Air Curtain Overdoor Fan Air Barrier for Door Restaurant Refrigeration Cold Storage
2024 Theodoor 4G Series Air Curtain Overdoor Fan Air Barrier for Door Restaurant Refrigeration Cold Storage

What's the main functions of Air Curtain?

1. Dust-proof, insect prevention
2. Isolate the smell
3. Energy saving
4. Comfortable heating


How to select suitable air curtain?
There are many factors that we have to consider when selecting an air curtain, some of which are listed below:
1. Application
2. Door height
3. Door width
4. Outside wind
5. Building static pressure
6. Door structure
7. Ambient temperature
8. Air curtain size
9. Air curtain design and look
10. Noise level
11. Power consumption
